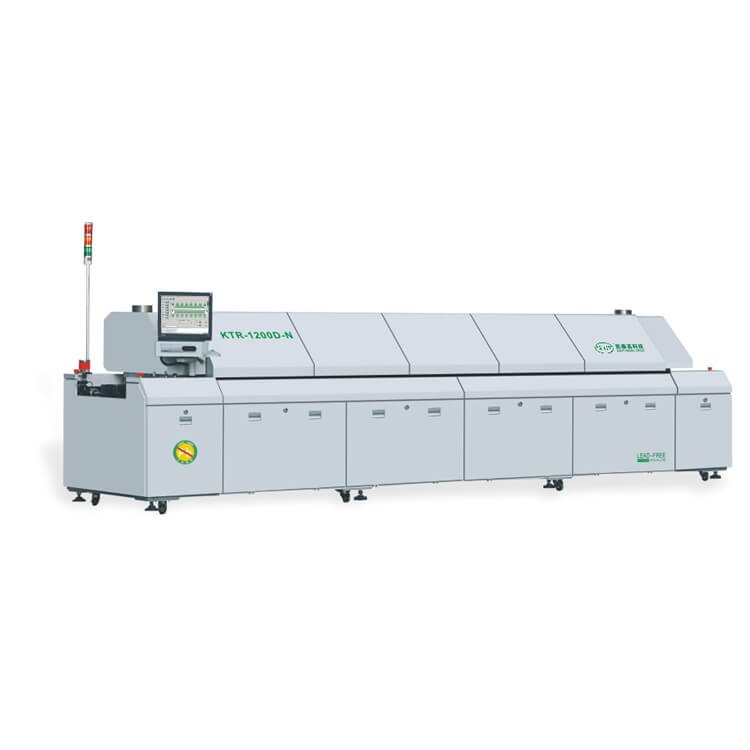

Dual lane Nitrogen SMT Reflow Oven KTR-1200D-N

Nitrogen soldering process
dual rail conveyor
Weight APPROX:3360KG
Dimension 7050*1680*1530mm

Dual lane Nitrogen SMT Reflow Oven KTR-1200D-N

Specifications:

Features:

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.

8. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.

9. The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.

Model	KTR-1200D-N	Control	Industrial computer
Heating zones quan.	Top 12, bottom 12	Cooling zones quan.	Top 3, bottom 3
Heating zone length	4675mm	Current plate	Thick copper plate
Weight	APPROX:3360KG	Dimension	705016801530mm
Exhaust capacity	10㎡/min×2	Color	Grey
Nitrogen system
With "-N" standard configuration including nitrogen sealed structure and pipeline, nitrogen flow meter, water chiller cooling system
Full Nitrogen system: Oxygen analyzer added on the N Standard
Nitrogen consumption Standard width machine (400mm Width): 300-1000ppmO2ppm, 10-20m3/ hr
N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr
Control system
Electricity supply	3P 380V/220V 50/60HZ	Temp. control range	Room temp.～300℃
Total power	99KW	Temp. control accuracy	±1℃（static state）
Start power	44KW	Temp. control method	PID +SSR drive
Consumption power	12KW	PCB temperature deviation	±1.5℃
Speed control	3 sections with 3 inverters	Data save	All profiles can be saved
Warm up time	Apprx.30minute	Abnormal alarm	High, low temp. alarm
Conveying system
Rail structure	2 Sectional structure	Rail fixed method	Front fix
Chain	Stuck-free stainless steel type	Conveying height	900±20mm
PCB Max. width	50-400mm	Conveying method	Rail+ chain
Component height	Top/bottom 30mm	Conveying speed	300-2000mm
Conveying direction	Left to right	Lubrication	Automatic
Cooling system
Cooling method	Forced air cooling
Heating features
Heating zones	Top 12,bottom 12（4675mm）can meet the need of the peak lead-free technique.
Cooling zones	After cool down by air, PCB temp. is ≤50℃ at the exit.
Warm up time	From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence	Warm up from two side, save the power and time
Profile transfer time	＜15min
Heating zone temp. control accuracy	±1℃
PCB temp. deviation	±1.5℃
Empty→ full load heat balance respond time	≤20 s
