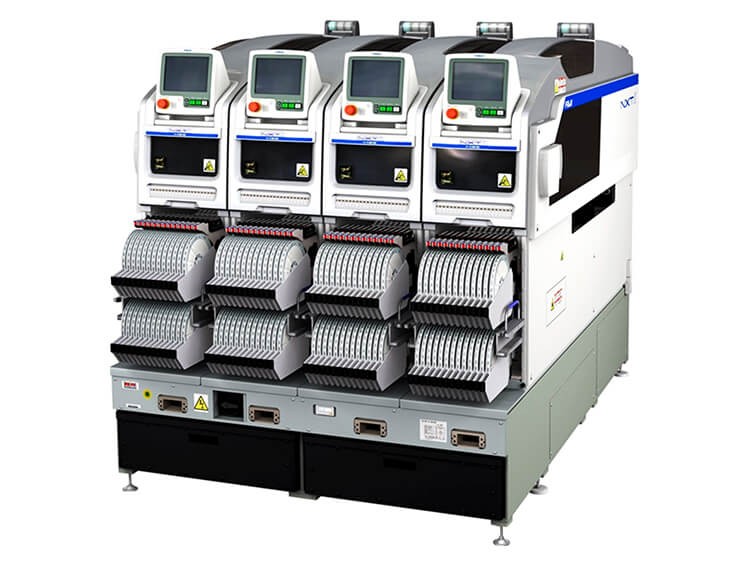

FUJI NXT M3II M3III M6II M6III Pick and Place Machine

Max PCB: 534 x 610 mm
Component: H24G : 0201 to 5 x 5 mm Height : up to 2.0 mm
Speed: H24G : 37,500 cph
Dimentsion: L1295 mm W: 1900.2 mm, H: 1476 mm

FUJI NXT M3II M3III M6II M6III Pick and Place Machine

Specifications:

Improved Productivity

A faster XY robot and faster tape feeders, as well as a newly developed "flying vision" parts camera, mean increased placing ability for all part sizes and types.

The new H24G high-speed head achieves 37,500 cph (chips per hour) (Productivity priority mode) per module, a 44% improvement from the fastest speed of the NXT II.

* Under conditions at Fuji.

0201 mm Part Support, +/- 0.025 mm Placing Accuracy

As well as supporting the smallest parts currently being used in mass production (0402 mm, 01005"), the NXT III can also handle the next generation of components heading for the market - 0201 mm parts.

By improving machine rigidity and further refining its independent servo control and vision recognition technology, Fuji has achieved a placing accuracy for small chip parts of +/- 0.025 mm* (3sigma, Cpk≥1.00).

* Under conditions at Fuji.

Improved Usability

The GUI of the original NXT was widely praised for making use of intuitive and easy-to-understand pictograms instead of relying on language-based instructions.

This interface is now combined with a touchscreen panel to make operation even easier. This reduces the number of button pushes required and makes selecting commands easier, as well as improving quality by reducing the chance of performing the wrong command.

High Compatibility

Many of the main units from the NXT II such as placing heads, nozzle stations, feeders, tray units, and feeder pallet exchange units can be used on the NXT III without any modifications.

Model	M3 III	M6 III
Applicable PCB size (LxW)	48 x 48 mm to 250 x 510 mm (double conveyor)* 48 x 48 mm to 250 x 610 mm (single conveyor) *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.	48 x 48 mm to 534 x 510 mm (double conveyor)* 48 x 48 mm to 534 x 610 mm (single conveyor) *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.
Part types	Up to 20 types of parts (calculated using 8 mm tape)	Up to 45 types of parts (calculated using 8 mm tape)
PCB loading time	For double conveyor: 0 sec (continuous operation) For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules)
Placement accuracy (Fiducial mark standard) * The placing accuracy is obtained from tests conducted by Fuji.	H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00 H08/H04 : +/-0.050 mm (3sigma) cpk≥1.00 H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00 H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00 GL : +/-0.100 mm (3sigma) cpk≥1.00	H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 H08M/H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00 H08/H04/OF : +/-0.050 mm (3sigma) cpk≥1.00 H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00 H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00 GL : +/-0.100 mm (3sigma) cpk≥1.00
Productivity * The throughput above is based on tests conducted at Fuji.	H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) V12 : 26,000 cph H12HS : 24,500 cph H08 : 11,500 cph H04 : 6,500 cph H04S : 9,500 cph H04SF : 10,500 cph H02 : 5,500 cph H02F : 6,700 cph H01 : 4,200 cph G04 : 7,500 cph G04F : 7,500 cph GL : 16,363 dph (0.22 sec/dot)	H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) V12 : 26,000 cph H12HS : 24,500 cph H08M : 13,000 cph H08 : 11,500 cph H04 : 6,500 cph H04S : 9,500 cph H04SF : 10,500 cph H02 : 5,500 cph H02F : 6,700 cph H01 : 4,200 cph G04 : 7,500 cph G04F : 7,500 cph 0F : 3,000 cph GL : 16,363 dph (0.22 sec/dot)
Supported parts	H24G : 0201 to 5 x 5 mm Height : up to 2.0 mm V12/H12HS : 0402 to 7.5 x 7.5 mm Height : up to 3.0 mm H08M : 0603 to 45 x 45 mm Height : up to 13.0 mm H08 : 0402 to 12 x 12 mm Height : up to 6.5 mm H04 : 1608 to 38 x 38 mm Height : up to 9.5 mm H04S/H04SF : 1608 to 38 x 38 mm Height : up to 6.5 mm H02/H02F/H01/0F : 1608 to 74 x 74 mm (32 x 180 mm) Height : up to 25.4 mm G04/G04F :0402 to 15 x 15 mm Height : up to 6.5 mm
Module width	320 mm	645 mm
Machine dimensions	L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III) W: 1900.2 mm, H: 1476 mm
