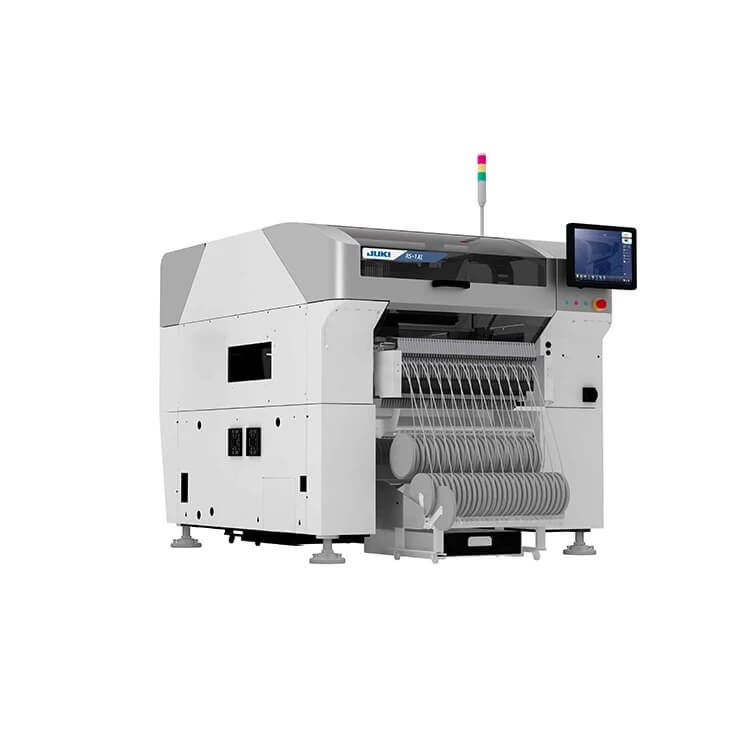

JUKI RS-1XL Pick and Place Machine

JUKI RS-1XL Pick and Place Machine

  • Speed:42000CPH
  • PCB Size : 650×560㎜
  • Feeder input:112pcs
  • Weight: 1850KG
  • Product description: JUKI RS-1XL Pick and Place Machine, Speed:42000CPH, PCB Size : 650×560㎜, Feeder input:112pcs, Weight: 1850KG

JUKI RS-1XL Pick and Place Machine


JUKI RS-1XL Pick and Place Machine

Speed and Flexibility for High Quality Production of any PCB
With maximum speed up to 42,000CPH (Optimum) and 29,000CPH (IPC9850), the RS-1XL is designed for maximum throughput. The RS-1XL supports components from 0201 metric (008004") up to 74mm square and 50mm x 150mm rectangular parts for maximum flexibility.
Class Leading Speed up to 29,000CPH (IPC 9850)
New Disruptive Technology
Wide Component Range
Highly Adaptable Design
RS1-XL Model Changes (vs. the RS1 model):
-- Board size is now 650 × 560mm
-- Air consumption is now 200L/min
-- Machine dimensions are now 2,109 × 2,000 × 1,440mm
-- Approx. mass is now 1,850kg

Specification of JUKI RS-1XL

Fast Smart Modular SMT Mounter

Boars size 50×50㎜~650×560
Component height
Component size
Shooter, JUKI Placement,  JUKI RS-1XL, JUKI Modular Mounter
Placement speed
Optimum: 42,000CPH; IPC9850:29,000CPH
Placement accuracy
±0.035mm (Cpk≧1)
Feeder inputs
max.112(Using RF feeders)


JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine,SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT Inspection MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solution !
B. Life Time Techinical Support !
C. Free Online Training Installation Service !
