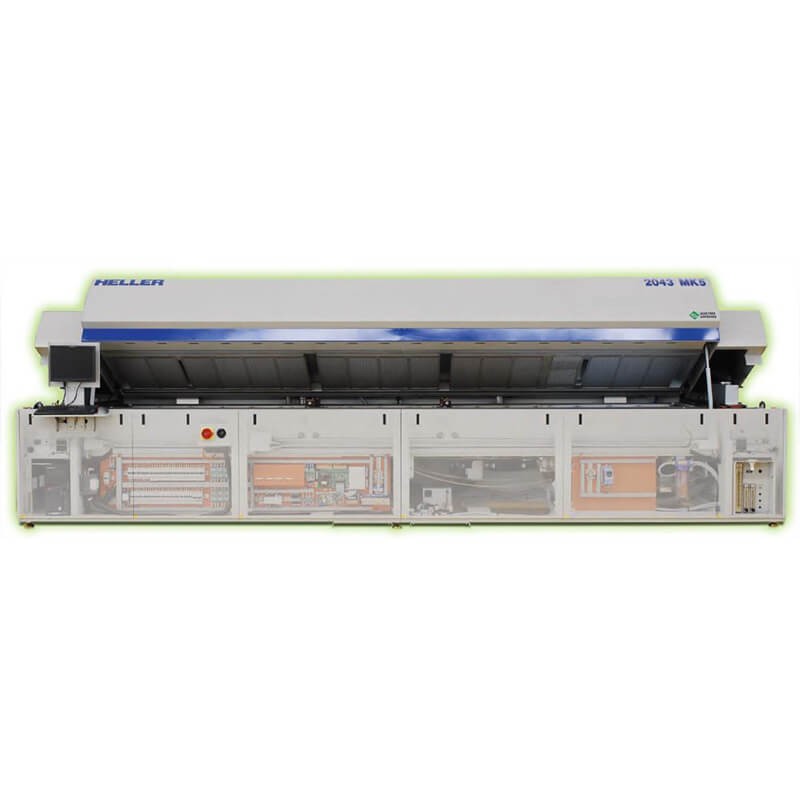

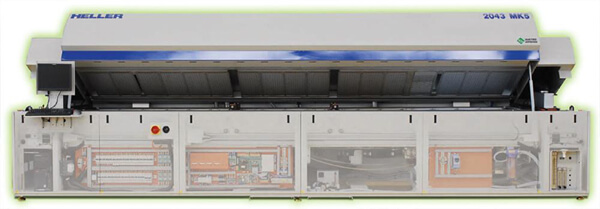

Heller 1936/2043 MARK 5 SMT REFLOW OVEN

Heller 1936/2043 MARK 5 SMT REFLOW OVEN

Specifications:

Heller 1936/2043 MARK 5 SMT REFLOW OVEN

The ultimate high volume production solutions with belt speeds up to 1.4 m/min to accommodate the fastest pick and place systems.

Lead Free Certified!

Maintenance Free!

Lowest Nitrogen & Electrical Usage!

Integrated Cpk software at No Charge!

The 1936 and 2043 MK5 systems deliver the highest levels of repeatability with the lowest delta Ts. The latest breakthroughs associated with the Mark 5 reflow system now provide you with an even lower cost-of-ownership. Heller's new heating and cooling advances deliver up to 40% reduction in nitrogen and electrical consumption. This makes the MK 5 system not only the premier reflow soldering system but the best overall value in the industry!

INNOVATION FOR YOUR BENEFIT

Advancements like the invention of the first waterless / filterless flux separation system earned Heller the prestigious Frost & Sullivan Award for Innovation in reflow soldering. But more importantly, this development extended preventative maintenance intervals from weeks to months for our systems. Additional breakthroughs in energy management have helped Heller's customers remain environmentally responsible while still maintaining their sustainability guidelines.

	1936 MK5 (Air)	1936 MK5 (Nitrogen)
Power Input (3 Phase) Standard	480 volts	480 volts
Breaker Size	100 amps @ 480v	100 amps @ 480v
kW	9 - 15 Continuous	9 - 15 Continuous
Typical Run Current	30 - 35 amps @ 480v	30 - 35 amps @ 480v
Optional Power Inputs Available	208/240/380/400/415 VAC	208/240/380/400/415 VAC
Frequency	50/60 Hz	50/60 Hz
Sequential Zone Turn On	S	S
Overall Oven Dimensions	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H
Typical Net Weight	6380 lbs. (2900 kg)	7180 lbs. (3280 kg)
Typical Shipping Weight	7875 lbs. (3580 kg)	8980 lbs. (4080 kg)
Typical Shipping Dimension	244” x 73” x 83”	620 x 185 x 210 cm
Overall Oven Dimensions	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H
Height From Floor	35.5" + 2.0"  (90 cm + 5 cm)	35.5" + 2.0"  (90 cm + 5 cm)
Maximum PCB Width	22" (55 cm)	22"  (56 cm)
Space Required Between PCB's	0.0" (0.0 cm)	0.0" (0.0 cm)
Conveyor Length On-Load	18" (46 cm) *	3" (7.5 cm)  *
Conveyor Length Off-Load	18" (46 cm) *	3" (7.5 cm)  *
Heated Tunnel Length	135"  (343 cm)	135"  (343 cm)
Process Clearance Above Mesh Belt	2.3" (5.8 cm)	2.3" (5.8 cm)
