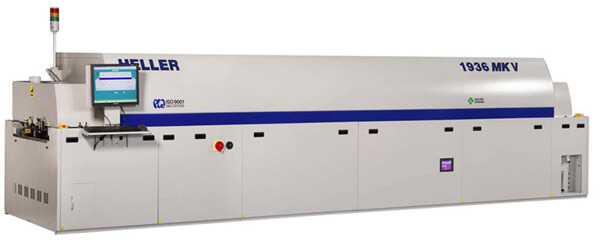

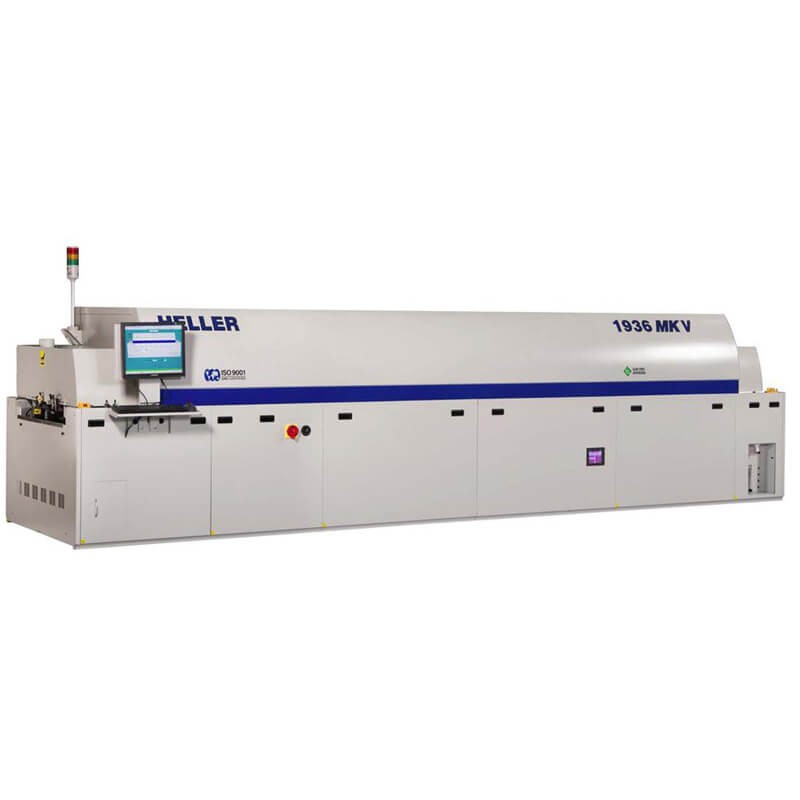

Heller 1936 MKV SMT Reflow Oven

Heller 1936 MKV SMT Reflow Oven

Specifications:

Heller 1936 MKV SMT Reflow Oven

This new oven has been designed to meet Semi S2/S8 safety standards (including toxic gases).

Formic Acid has been shown to be an effective reducing agent in fluxless solder reflow

Excellent results demonstrated for wafer bumping application in horizontal reflow oven

Fluxless reflow utilizes gas phase Formic Acid (HCOOH) to replace standard fluxing agents

Eliminates the need for pre-reflow fluxing and post-reflow flux cleanup steps

No post-reflow flux clean facilitates inline application of epoxy and inline epoxy curing solution

Feasibility has been demonstrated with production grade oven

Extensive engineering efforts in safe, precision delivery of formic acid and abatement

Fluxless Reflow Advantages

Can use any reflow profile (e.g., tent or soak profile) with formic acid

Can adjust formic acid profile in oven in conjunction with thermal reflow profile

Includes Formic acid safety system (i.e., sensors/detectors) adheres to industry standards

Includes Formic acid abatement systems for Green Process Solution

Includes real time formic acid concentration monitor system

	1936 MK5 (Air)	1936 MK5 (Nitrogen)
Power Input (3 Phase) Standard	480 volts	480 volts
Breaker Size	100 amps @ 480v	100 amps @ 480v
kW	9 - 15 Continuous	9 - 15 Continuous
Typical Run Current	30 - 35 amps @ 480v	30 - 35 amps @ 480v
Optional Power Inputs Available	208/240/380/400/415 VAC	208/240/380/400/415 VAC
Frequency	50/60 Hz	50/60 Hz
Sequential Zone Turn On	S	S
Overall Oven Dimensions	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H
Typical Net Weight	6380 lbs. (2900 kg)	7180 lbs. (3280 kg)
Typical Shipping Weight	7875 lbs. (3580 kg)	8980 lbs. (4080 kg)
Typical Shipping Dimension	244” x 73” x 83”	620 x 185 x 210 cm
Overall Oven Dimensions	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H	232" (590cm) L  x 60” (152cm) W  x 63” (160cm) H
Height From Floor	35.5" + 2.0"  (90 cm + 5 cm)	35.5" + 2.0"  (90 cm + 5 cm)
Maximum PCB Width	22" (55 cm)	22"  (56 cm)
Space Required Between PCB's	0.0" (0.0 cm)	0.0" (0.0 cm)
Conveyor Length On-Load	18" (46 cm) *	3" (7.5 cm)  *
Conveyor Length Off-Load	18" (46 cm) *	3" (7.5 cm)  *
Heated Tunnel Length	135"  (343 cm)	135"  (343 cm)
Process Clearance Above Mesh Belt	2.3" (5.8 cm)	2.3" (5.8 cm)
