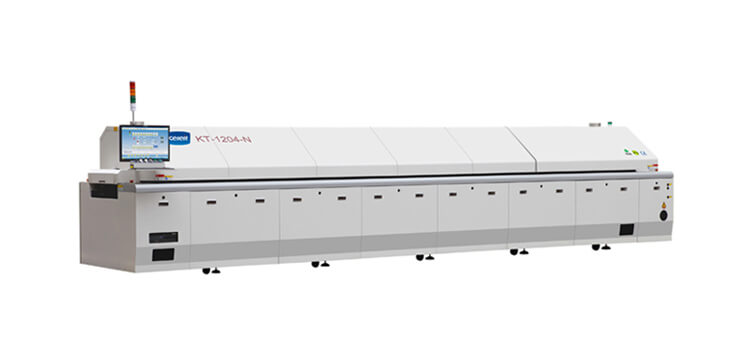

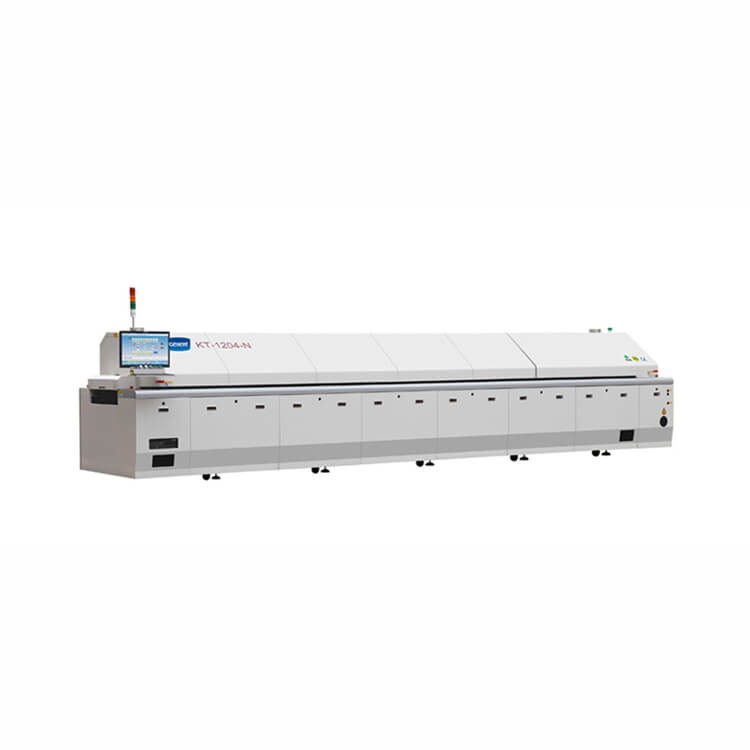

JT SMT Reflow Oven KT series

Max PCB width: 450mm
8 heating zones
Weight: 3150KG/3300KG
Outside Dimension: 5900X1725X1630mm

JT SMT Reflow Oven KT series

Specifications:

JT Reflow Oven KT series:KTD-0804/KTD-0804-N, KTD-1004/KTD-1004-N, KTD-1204/KTD-1204-N

High speed, high efficiency, conveyor speed can run 160cm/min. in normal soldering process.

Prevent deformation design as well as two-phase rail composition.

New two level flux reclaim system with multi-zones collecting.

Whole tunnel nitrogen protection and oxygen concentration monitoring, the 02 ppm can be checked automatically or manually.

New enhanced 4 cooling zones which are able to cool down the PCBA to 50℃ even in large volume lead free process.

Model	KTD-0804/KTD-0804-N	KTD-1004/KTD-1004-N	KTD-1204/KTD-1204-N
GENERAL
Outside Dimension	5900X1725X1630mm	6622X1725X1630mm	7313X1725X1630mm
Standard Color	Computer Grey	Computer Grey	Computer Grey
Weight	Approx.3150KG/3300KG	Approx.3650KG/3800KG	Approx.4150KG/4300KG
Electric Supply Required	3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)
Electric Power	71KW/74KW	89KW/92KW	101KW/105KW
Power For Warm Up	33KW/35KW	35KW/37KW	40KW/42KW
Power Consumption	9KW/9.5KW	10KW/11KW	11.5KW/13KW
Components Clearance	PCB Top:30mm Bottom:25mm
Model	KTS-0804/KTS-0804-N	KTS-1004/KTS-1004-N	KTS-1204/KTS-1204-N
GENERAL
Outside Dimension	5900X1495X1630mm	6622X1495X1630mm	7313X1495X1630mm
Standard Color	Computer Grey	Computer Grey	Computer Grey
Weight	Approx.2800KG/2950KG	Approx.3250KG/3400KG	Approx.3700KG/3850KG
Electric Supply Required	3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)
Electrical Power	65KW/69KW	81KW/85KW	93KW/97KW
Power For Warm Up	30KW/32KW	32KW/34KW	37KW/39KW
Power Consumption	7.5KW/8.5KW	8.5KW/9.5KW	10.5KW/11.5KW
Components Clearance	PCB Top:30mm Bottom:25mm
Model	KTS-0804L/KTS-0804L-N	KTS-1004L/KTS-1004L-N	KTS-1204L/KTS-1204L-N
GENERAL
Outside Dimension	5900X1725X1630mm	6622X1725X1630mm	7313X1725X1630mm
Standard Color	Computer Grey	Computer Grey	Computer Grey
Weight	Approx.3100KG/3250KG	Approx.3600KG/3750KG	Approx.4100KG/4250KG
Electric Supply Required	3 Phase,380V Phase,220V 50/60H (Optional:3 50/60HZ)
Electric Power	71KW/74KW	89KW/92KW	101KW/105KW
Power For Warm Up	32KW/34KW	34KW/36KW	39KW/41KW
Power Consumption	8KW/9KW	9.5KW/10KW	11KW/12KW
Components Clearance	PCB Top:30mm Bottom:25mm

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments , JUKI products, JUKI Pick and Place Machine Machine, JUKI SMT Stencil Printer, JUKI Assembly Line, JUKI SMT Reflow Oven; JUKI SMT Inspection Machine; JUKI SMT Spare Parts; SMT Equipment; JUKI SMT Peripheral Equipment; any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: tommy@flason-smt.com

1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
