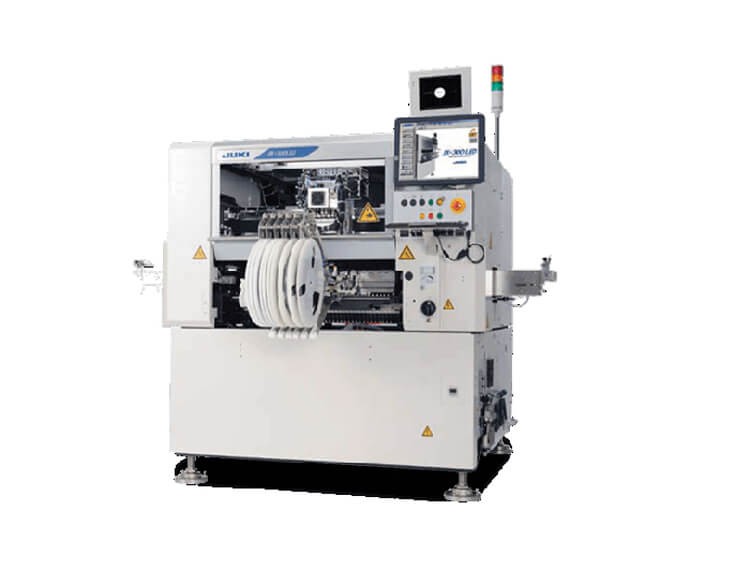

JUKI JX-300 LED Pick and Place Machine

JUKI JX-300 LED Pick and Place Machine

Specifications:

JUKI JX-300 LED Pick and Place Machine

The new JX-300 LED Mounter offers a flexible placement system specially designed for LED lighting products and mid- to large LCD display backlights.

It can support ultra-long boards up to 1,500mm and JUKI laser centering for high speed, high accuracy placement offers the best in the industry.

Ultra-Long Board Support

High Speed

High Accuracy

Support Ultra-Long Boards up-to 1,500mm

High-speed clamping system reduces transport time for long and super-long boards.

Laser Centering for High Speed, High Accuracy

Head moves directly from the pick position to the placement position.

Wide Variety of Special Nozzles for LEDs

Nozzles specifically designed for LEDs.

Unique Features for Flexibility

Accurate Placement even without fiducial marks.

BOARD SIZE

Standard Specification:

50 X 50 ~ 1,200 X 360mm

Longer Sized PWB:

50 X 50 ~ 1,500 X 360mm

COMPONENT SPECS

Component Height:6mm/12mm

Component Size:Laser Recognition:0603(0201) ～ 33.5mm

FEEDER INPUTS：Max.40 in case of 8mm tape

PLACEMENT SPECS

Placement Speed (chip):

• Optimum: 23,300CPH

• IPC9850: 18,300 CPH

Placement Accuracy:

±0.05mm(Cpk≧1)
