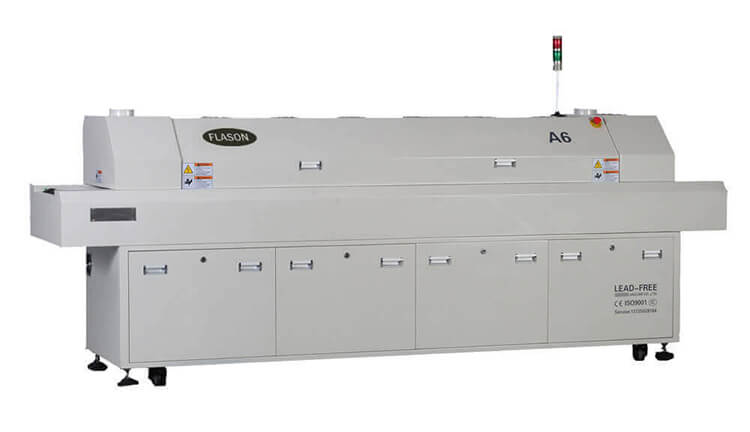

Mini SMT Reflow oven A6

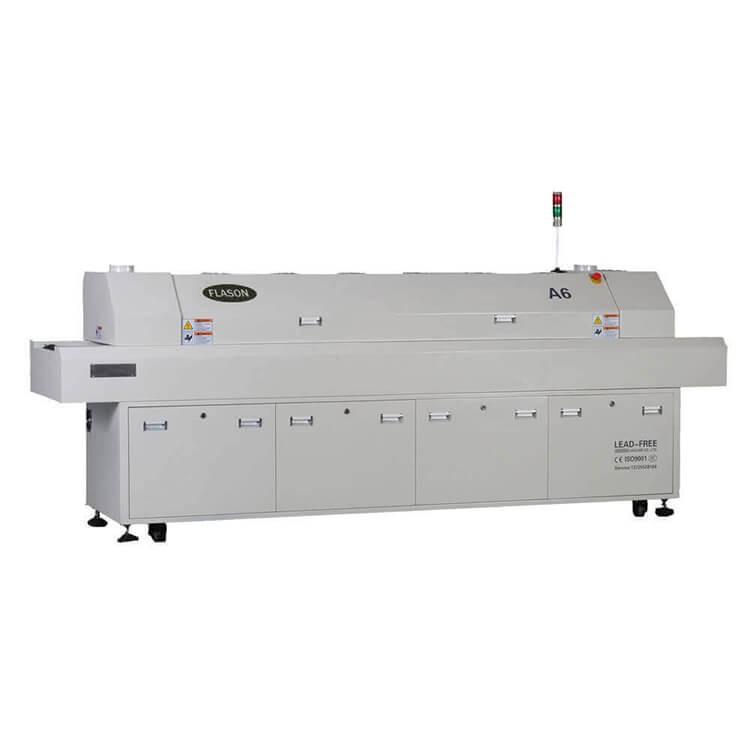

Mini SMT Reflow oven A6

Specifications:

Mini SMT Reflow oven A6

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.

2. Using special high temperature barrier structure for heat preservation and special iron in

Heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.

4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.

No.2 Smooth and reliable transmission system

1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.

2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.

3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.

2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.

3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .

4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.

5. Failure diagnosis, visual & audio alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.

Model	Flason A6
Heating System	Number of heating zones	Top 6/Bottom6
	Heating passage	2400MM
	Heating style	Top: hot air; bottom: IR
	Cooling style	Force air
Conveyor System	Max. Width of PCB	350mm
	Mesh belt width	400mm
	Conveyor Direction	L-R(or R-L)
	Process Height	880±20mm
	Conveyor type	Mesh
	Conveyor speed	0-1000mm/min
	Fixed track	Front track fixed(option: rear track fixed)
Control system	Power supply	5 line 3 phase 380V 50/60Hz
	Total power consumption	28kw
	Startup power consumption	24kw
	Steady consumption	4KW
	Ramp Up time	About 20 mins
	Temp. setpoint	Room temperature-300°C
	Temp. control method	PID close loop control & SSR driving
	Temp. control precision	±1°C
	Temp. deviation on PCB	±2°C
	Data storage	Process Data and status storage (80 GB)(machine with PC)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temp. (overtemp/low temp.)
	Board dropped alarm	Tower light: Amber-warning, Green-normal, Red-abnormal
General	Dimension(L*W*H)	3500×700×1320mm
	Weight	600KG
	Color	Computer grey
